Putting transit GIS data to use

UPDATE:

I was reminded recently that Albert Sun‘s terrific Wall St Journal interactive about the spatial patterns of Metrocard usage uses the subway routes in GIS format that I created.  It’s not a major part of the map; the routes are used as a backdrop more than anything. But I was glad the Journal was able to use the data.  (Per the notes from the map, the subway data was “from the MTA. Demographic data from the U.S. Census Bureau. Additional work refining subway line shapes from the CUNY Mapping Service at the City University of NY Graduate Center.”)  Here’s a screen shot:


ORIGINAL POST

Recently I’ve come across several examples of people being able to use the MTA subway and bus data that I had converted to GIS format a couple of years ago.  I know that I’ve been able to put the data to good use.  But I’m especially glad to see others benefiting from my efforts.

So I thought I’d share some maps and links below.  Hopefully this will inspire others to use the data, and to let us know about other examples.  If you’ve been able to use the subway or bus GIS data, please let drop me a line by email or add a comment to this post.  Thanks!

Distance Cartograms

Zach Nichols wrote a week ago that he incorporated my GIS version of NYC subway routes into a blog post about “re-scaling NYC based on MTA transit time.”  Here’s one of his maps (a “distance cartogram”); very cool!

Mobile apps

One of the entrants in last year’s MTA AppQuest contest used the subway route GIS data as a layer on their map for reference.  The app — Dead Escalators — is being updated for distribution in the iTunes App Store.  Look for it there soon!  In the meantime, here are a couple of screen shots:



GIS data for student projects

  1. Liz Barry’s students at the New School are incorporating the data into their projects.  Glad to be of help, and thanks Liz for your kind words!
  2. Christopher Bride, a GIS student at CUNY’s Lehman College, used the data for his Capstone project this year examining the intersection of food deserts and the likely route home from subway/bus stations.  The project’s goal is to pinpoint fresh food-critical neighborhoods in New York City.  Here are two sample maps, focused on the Bronx:

  1. Lauren Singleton-Meyers at NYU’s Steinhardt School of Culture, Education and Human Development used the subway routes for a project with the New York Center for Alcohol Policy Solutions, for a campaign she’s launched to stop alcohol advertising on public transportation in the city.  As a start, she’s mapped schools and subway routes and stations.  Next steps will be to link pictures of alcohol ads to the subway route lines as part of an educational effort showing what types of ads are being displayed on each route.

Here’s her map (a work in progress) via ArcGISOnline and ArcGIS Explorer:

  Here are some example photos via her Flickr stream.  If anyone has suggestions on helping her with the next steps for her map, please get in touch (their Twitter handle is @EMTAA).

Inspiring similar efforts in other cities

Soon after I wrote my blog post with the MTA’s data in GIS format, it had an impact not only here in New York but in at least one other city: Chicago.  Blogger and urban planning advocate Steve Vance adapted my methodology to transform the GTFS data from the Chicago Transit Authority into GIS format.  Here’s his post: http://www.stevencanplan.com/2010/obtaining-chicago-transit-authority-geodata/ , plus a more in-depth discussion of his technique: http://www.stevencanplan.com/2010/how-to-convert-gtfs-to-shapefiles-and-kml/

Proximity of bus stops to pedestrian accidents

This week the Tri-State Transportation Campaign published an analysis of pedestrian fatalities in Nassau County and several towns in Connecticut, and noted that in Nassau, for example, 83% of the fatalities from 2008-2010 occurred within a quarter-mile of a bus stop.  The group used my GIS version of MTA’s bus GTFS data for their analysis.

I haven’t examined TSTC’s report closely, so I’m not sure how strong of a causal relationship exists between bus stops, per se, and the fatalities (an anonymous commenter at TSTC’s blog argues that “Of course the most pedestrian deaths occur near bus stops, they’re located in the only places in the county where anyone actually walks”).

But one observer on Twitter, @capntransit, wondered if buses are so ubiquitous that the relationship would be a non-issue (they wrote “Isn’t 85% of Nassau County within a quarter-mile of a bus stop?”)  I thought I’d try to answer, and came up with the following by mapping the bus stops and block-level population data from the 2010 Census:

  • Nassau County’s land area is 285 square miles.  The area within 1/4 mile of all LI Bus stops is 119 square miles (42% of the county area); and
  • Nassau’s population in 2010 was 1.34 million people.  The population within 1/4 mile of all LI Bus stops in 2010 was 838,524 people (63% of the county population).
  • So on the face of it, the concentration of fatalities near bus stops seems disproportionately higher than the overall nearby population.  The map below highlights the bus stop coverage:

I’m glad my data conversion efforts have been helpful.  It’s only possible due to the MTA’s ongoing effort to provide easy public access to their data sets.  This enables me and many others to help improve life in and around the city by integrating their data into maps, applications, government accountability efforts, and more.  Please send more examples of how you’ve been able to use the data; highlighting these projects helps us all.

NYC’s open data legislation: reading between the lines

TL; DR (i.e., the summary)

NYC is about to adopt what some are calling “landmark” and “historic” legislation regarding open data.  Does the hype match the reality?

I offer the analysis below not as a critique of the City Council.  I think they probably tried to negotiate as good a bill as they thought they could achieve.  I offer it more as food for thought for those of us who will be seeking the data that may eventually become available because of the legislation (and for those of us who rely on data that’s currently available that may become less so due to the bill).

Hopefully my concerns represent a worst case scenario.  If the bill’s implementation indeed lives up to the “landmark” status bestowed on its passage, that would be a great thing.

For example, the Council’s committee report on the bill [Word doc] suggested that substantial city data sets such as the Building Information System (BIS) or the Automated City Register Information System (ACRIS) would be made available in open, accessible formats due to the legislation. If that happens, that would be great.  But for each of the handful of examples like that suggested at yesterday’s Council committee meeting, I could offer several more that I believe might escape the requirements of this bill.

My overall sense is that somewhere during the two-plus years the bill has been on the table, the details got in the way of the original vision embodied in this proposal.  And, as they say, the devil is in the details.  If you’re interested in my take on those gory details, please read on.


An important step

The bill is important, in a way. It’s an acknowledgment by the City Council (and the Mayor, if he signs it) that city agencies need to provide public access to data sets online, in a standardized electronic format.

In doing so, it goes a step beyond FOIL — the New York State law since the mid-1970s that has required agencies (including local government) to provide public access to data.  Though FOIL has adapted to the times to some extent — the courts and policymakers now understand that FOIL applies to electronic data as well as printed material — it is still a reactive approach.  You have to submit a FOIL request (and have a good idea of what data you’re requesting) for an agency to respond and give you access.  New York’s Committee on Open Government describes it as “pull” vs. “push”. [PDF]

Some smart agencies have realized that posting data electronically saves money, time, and effort. By posting data online proactively, before the agency even receives a single FOIL letter  (“pushing” it so people don’t have to “pull” it), it avoids having to respond individually to FOIL requests.

So the City Council bill acknowledges that pushing is better than pulling.

Those devilish details

But will the legislation require agencies to post data online?  To some extent, yes.  But how far that goes depends on how it’s interpreted, and how aggressively it’s implemented (and perhaps how strongly the public reacts, since it seems like the only enforcement mechanism is public reaction).

The first substantive part of the bill says that within a year, agencies need to post their data at the city’s online data portal.  But let’s look closely at the language.  Section 23-502(a) says that within a year, agencies don’t need to publish all their data to the portal.  Only “the public data sets that agencies make available on the Internet” need to be included in the portal (emphasis mine).

In other words, if an agency has refused to provide public access to a data set, or perhaps only allows access to that data after you’ve paid a fee and/or signed a license agreement, or otherwise hasn’t already posted the data online — that data is exempt.

Then it gives agencies another loophole.  The next sentence says that even if an agency has a data set online, it doesn’t need to post it on the portal if they “cannot” put it on the portal.  (“Cannot” isn’t defined in the bill.  Does it mean “doesn’t want to”? Does it mean the data’s too complex for some reason?  “Cannot” seems to offer quite a bit of wiggle room.)

The bill further states:

the agency shall report to the department and to the council which public data set or sets that it is unable to make available, the reasons why it cannot do so and the date by which the agency expects that such public data set or sets will be available on the single web portal.

I’m not a lawyer, but it seems to me that if an agency doesn’t want to comply, it just needs to give a reason.  And it needs to give a date by when it will add the data to the portal.  The date could be two years from now, or it could be two decades from now.  That part of the bill doesn’t have a deadline.

Without aggressive support from the top — the Mayor and/or perhaps a new Chief Data Officer position with some teeth — agencies could just take their ball and go home and not play the open data game.  And the public will be the worse for it without much recourse.

Over-reliance on “the portal”

Let’s be optimistic and assume that all city agencies (even the current holdouts – I’m looking at you, City Planning Department & MapPLUTO) decide to post their data online.

The bill doesn’t say, or even mention as an option, that agencies can keep posting the data online at their own websites.  Instead, it has to be posted on “a single web portal that is linked to nyc.gov”.

But I’m not as enthusiastic as I once was for the portal approach (currently implemented here).

  1. Data for APIs, or people?

At first I thought the portal would be so much better than the city’s earlier Datamine site. But the site seems to focus heavily on APIs and web service access to the data, which might be great for programmers and app developers, but not so good for people, like Community Board staff, or reporters, or students, or anyone else who just wants to download the data and work with the files themselves.

  1. Some agency websites are doing a better job

Also, why not allow — even encourage — agencies to continue posting data on their own websites?  I think that, in many instances, the individual agencies are doing a better job than the data portal. The files available for downloading from agency sites such as Finance, City Planning, Buildings, and Health are more up to date, more comprehensive (though still hardly complete), and easier to understand than what I can find on the portal.

I think it would be ok if both approaches existed (portal and individual agency sites). But the way the bill is worded, I think the risk is that agencies are more likely to do only what they have to do or what they’re expected to do.  Since the bill focuses on the portal, I think we may see individual agency data sites whither away, the rationale being why bother with individual sites since they have to post to the portal.  With sites such as City Planning’s Bytes of the Big Apple (which is really great, with the exception of the PLUTO license/fee), I think that could be a big loss for the many people and organizations who have come to rely on the high quality data access that these agency sites provide.  Hopefully I’ll be proven wrong.

  1. The current portal falls far short of a forum for public discussion

The bill requires DoITT to

implement an on-line forum to solicit feedback from the public and to encourage public discussion on open data policies and public data set availability on the web portal.

But if the current portal is the model for this online forum, I’m concerned.

When I access data from the agencies themselves, I can talk with the people directly responsible for creating and maintaining the data I’m seeking. I can have conversations with them to understand the data’s limitations. I can discuss with them how I’m planning to use the data, and if they think my expectations of the data are realistic.

In contrast, the portal requires me to either go through a web form (which I’ve done, and received zero communication in return), or to contact someone who has no identification beyond their name (or some online handle).  Do they work for an agency?  Do they even work for New York City?  I have no idea; the portal provides no information.  So much for a site that’s supposed to be promoting “transparency in government.”

To me, the portal is somewhat analogous to the city’s 311 system and the recent articles about putting the city’s Green Book online.  Though 311 is great in a lot of ways, it has put a wall between the public and individual city agency staff members.  Try finding a specific staffperson’s contact information via nyc.gov, like the New York Times recently did.  It’s almost impossible; you have to communicate through 311. Similarly, the online data portal — if it ends up replacing agency websites as sources for online data access — will make it difficult to locate someone knowledgeable about the data.

This widens the “data gap” — the gap of knowledge between data creators and data users.  In order to know whether a particular data set meets my needs (if I’m creating an app, or even just writing a term paper), sometimes a written description of the data is not enough.  I may need to actually talk with someone about the data set.

But good luck finding that person through the data portal.

And even when people have used the portal to submit online comments, I don’t know if anything ever comes of it.  It looks like only 14 of the 800+ datasets at the portal have comments (sort the list by “Most Comments”).  All of the comments raise important questions about the data.  For example, two people offered comments about the HPD Registration data available through the portal.  They asked “Is there any plan to expand it?” and “Could you help us?”  Both remain unanswered.

Maybe everyone who commented was contacted “offline”, as they say.  Either way, this hardly constitutes a forum for public discussion.  No public interactivity.  No transparency.  No guidance.  It’s no wonder there’s been so little use of the portal’s  button (and I use the term “Discuss” loosely).

Public data inventory

Another section of the bill has a nugget of hope.  But the way it’s worded, I’m not too optimistic.

Section 23-506(a) says that within 18 months, DoITT shall present a “compliance plan” to the Mayor, the Council, and the public.  Among other things, the plan must “include a summary description of public data sets under the control of each agency.”

In effect, this “summary description” (if it’s done right) will be the public data inventory that advocates have been pushing for (and which has been required by the NYC Charter since 1989). That’s a good thing. At least now we’ll know what data sets each agency maintains.

Hopefully it’ll be a comprehensive list. I guess the list’s comprehensiveness will be up to DoITT to enforce. (And if the list comes up obviously short, perhaps some enterprising FOILers can point out — very publicly — where the holes are 😉 ).

But that same section of the bill also says that the plan “shall prioritize such public data sets for inclusion on the single web portal on or before December 31, 2018“.  So it still relies solely on the data portal. And it gives the city another 6 years to make the data public. As someone said on Twitter, “sheesh”!

Then there’s another loophole.  The bill allows agencies to avoid meeting even the 2018 deadline by allowing them to

state the reasons why such [public data] set or sets cannot be made available, and, to the extent practicable, the date by which the agency that owns the data believes that it will be available on the single web portal.

“[T]o the extent practicable”?  When the agency “believes” it’ll be available?  Wow.  Those are some loose terms.  If I ran an agency and didn’t want to provide online access to my department’s data, I’d probably feel pretty confident I could continue preventing public access while easily complying with the law.

Where does this all leave us?

It looks like the City Council will pass this law, despite its limitations.  In fact, DoITT was so confident the law will pass, it emailed its February 2012 newsletter on the day the Council’s technology committee voted on the bill (Feb. 28, a day ahead of the expected full Council vote).  Here’s what the newsletter said about Intro 29-A:

“Will be voted on and then passed”?  I guess the full Council vote is pretty much a foregone conclusion.

That leaves us to hope that the bill’s implementation will address the issues I’ve outlined above, and any others that advocates may have identified.  Fingers crossed?

(Disclaimer: my viewpoints on this blog are my own, not necessarily my employer’s.)

Some NYC OpenData improvements – small but important victory!

I noticed today that NYC’s new OpenData site (on the Socrata platform) has made some modest improvements since I blogged about it earlier this month, and since several people have responded to comments from Socrata’s CEO.

In particular, many of the files listed in the Socrata/OpenData site as “GIS” files or “shapefiles” are now actually available for download as shapefiles.  You have to dig a bit to find the download option — it’s not available via the  button. You have to click the  button, and then scroll down to the “Attachments” section of the About page.  But in many cases, you’ll now find a zipped file containing a GIS shapefile.  Small — but important — victory!

The back story

When the OpenData site first launched, I was very concerned because there was no option to actually download most geospatial data sets — you could only access them as spreadsheets or web services via an API.  That’s not very helpful for people who want to work with the actual data using geographic information systems.  And it was a step backward, since many agencies already provide the GIS data for download, and earlier versions of the OpenData site had made the data available for direct download.

It also seemed like it was extra work for the agencies and for us — extra work to convert the data from GIS format into spreadsheets, for example, and then extra work for the public to try to convert the data back into GIS format once they had downloaded a spreadsheet from the OpenData site.  Seems pretty silly.

It also seemed like it was an example of DoITT not understanding the needs of the public — which includes Community Boards, urban planning students, journalists, and many others who routinely use GIS to analyze and visualize data.  Spreadsheets and APIs are nice for app developers — and the “tech community” broadly speaking — but what about the rest of us?

More public access to data, not less

If the city adds the shapefiles as a download option, that’s providing more open access to data, not less.  But by not offering GIS data along with the other formats, the Socrata system seems to be limiting access.  I’d hope that NYC would be as open and flexible and accommodating as possible when it comes to accessing public data.  Socrata’s CEO seems to argue that with the Socrata platform it’s too hard to do that.  If he’s right, maybe we should just stick with a tried and true approach — NYC agency websites already provide direct download of GIS data along with many other formats.

But I know that we can do better.  In fact, Chicago’s open data portal (also powered by Socrata) has offered many GIS datasets for direct download from Day 1.  Actually, Chicago has 159 datasets tagged as “GIS” files, while New York only has 69what’s up with that, NYC? I thought NYC was the best in everything when it comes to open data?

Still more to be done

Alas, even though we’re talking about a victory here, we can’t pop open the champagne quite yet.  Several of NYC’s data sets via the Socrata site aren’t as current as what you can already get from agency websites.  For example:

  • zoning is current as of August 2011, but you can download more current data (September 2011) from the ever-improving Planning Department’s Bytes of the Big Apple website;
  • building footprints are older (September 2010) than what you can download from DoITT’s GIS site itself (click through DoITT’s online agreement and you’ll get a buildings database from March 2011); and

Also, some data sets described on the Socrata/OpenData site as “shapefiles” are still not available in GIS format.  Some examples:

  • NYC’s landmarks data.  The OpenData site describes this data as a “point shapefile … for use in Geographic Information Systems (GIS).”  But it’s only available from the OpenData site as a spreadsheet (or similar format) or via an API.
  • Waterfront Access Plans.  The OpenData site describes this file as a “polygon shapefile of parklands on the water’s edge in New York City … for mapping all open spaces on the water’s edge in New York City.”  But like the landmarks data, it’s only available as a spreadsheet or via an API.  False advertising, if you ask me.  But if you go to the source (the City Planning Department), the shapefile is there for all to access.  So why is the Socrata/OpenData site any better? I’m still wondering that myself.

And the Socrata/OpenData site still doesn’t provide the kind of meaningful data descriptions (or metadata) that you’ll get from agency websites such as Bytes of the Big Apple or Dept of Finance — data descriptions that are absolutely essential for the public to understand whether the information from NYC OpenData is worth accessing.

But hope springs eternal — someone listened to our concerns about lack of actual geospatial data downloads, maybe they’ll also listen when it comes to everything else. Fingers crossed!

Pretty NYC WiFi map, but not useful beyond that

@nycgov posted a tweet on Friday touting the map of WiFi hotspots on the new NYC OpenData site.  I was impressed the city was trying to get the word out about some of the interesting data sets they’ve made public. It was retweeted, blogged about, etc many many times over during the day.

The map is nice (with little wifi symbols  marking the location of each hotspot).  And it certainly seems to show that there are lots of hotspots throughout the city, especially in Manhattan.

But when I took a close look, I was less than impressed.  Here’s why:

  • No metadata.  The NYC Socrata site has zero information on who created the data, why it was created, when it was created, source(s) for the wifi hotspots, etc.  So if I wanted to use this data in an app, or for analysis, or just to repost on my own website, I’d have no way of confirming the validity of the data or whether it met my needs.  Not very good for a site that’s supposed to be promoting transparency in government.
  • No contact info.  The wifi data profile says that “Cam Caldwell” created the data on Oct. 7, 2011 and uploaded it Oct 10.  But who is Cam?  Does this person work for a city agency?  It says the data was provided by DoITT, but does Cam work at DoITT?
    • If I click the “Contact Data Owner” link I just get a generic message form.  I used the “Contact Data Owner” link for a different data set last week, and still haven’t heard back.  Not even confirmation that my message was received, let alone who received it.  Doesn’t really inspire confidence that I can reach out to someone who knows about the data in order to ask questions about the wifi locations.
  • No links for more information. The “About” page provides a couple of links that seem like they might describe the data, but they don’t.

If I were to use the wifi data for a media story, or to analyze whether my Community Board has more or less hotspots than other Boards, or if I wanted to know if the number of hotspots in my area has changed over time, the NYC Socrata site isn’t helpful.

Even looking at the map on its own, it’s not very helpful.  Without knowing if the list of hotspots is comprehensive (does it include the latest hotspots in NYC parks? does it include the new hotspots at MTA subway stations? etc) or up to date (the Socrata site says the list of wifi sites is “updated as needed” – what does that mean?), I have zero confidence in using the data beyond just a pretty picture.

I’m sure if I clicked the “Contact Data Owner” link, eventually I’d get answers to these questions. But that’s not the point.  The point is that the new NYC OpenData site bills itself as a platform to facilitate how “public information can be used in meaningful ways.”  But if the wifi data is any guide, the OpenData site makes it almost impossible to meaningfully do anything with the data.

The wifi data is another example of how I think NYC’s implementation of the new Socrata platform is a step backwards.  Other NYC websites that provide access to public data — the City Planning Department’s Bytes of the Big Apple site as well as agency-specific sites from Finance, Buildings, HPD, and others — all provide detailed metadata, data “dictionaries”, and other descriptive information about available data files.  This contextual and descriptive information actually makes these data sets useful and meaningful, inviting the public to become informed consumers and repurposers of the city’s data.

The Socrata platform, in and of itself, seems great.  But NYC hasn’t done a very good job at all of putting it to use.  #opendata #fail

NYC’s new OpenData website: soars and falters all at once

UPDATE (10/13/11)

This evening I received a call from NYC DoITT.   They were mainly calling to tell me that they changed the official rules for BigApps 3.0.  Yesterday the rules said that no new data would be added to the OpenData site until after the BigApps competition.  As I said in my blog, why wait?  But DoITT saw that and agreed.  So now that clause has been removed from the rules (see section D.1).  DoITT says that they agree they data should be accessible whether there’s a competition in effect or not.  That’s great news!  I’m looking forward to more dialogue on the other issues I’ve raised below.

___________________________________________

ORIGINAL POST

New York City yesterday announced its new version of what had been called its “Datamine” website, a single online point of entry to access the city’s digital data holdings.

I’ve critiqued the Datamine project before, but I was heartened by the city’s choice to use the Socrata platform to upgrade Datamine. As I wrote a couple of months ago:

NYC’s Datamine was an improvement in some ways over earlier opendata efforts in New York. Now that it’s been around for two years, I think it’s fair to say that Datamine is clunky at best. For me, I can’t wait for it to be replaced by something better. I’m looking forward to the NYC/Socrata roll out.

Yesterday’s announcement came with great fanfare: 230 new data sets! (so they say), BigApps 3.0!, cash prizes!, etc.

But is “NYC OpenData” any better than Datamine?

After digging into the site for several hours last night and today, I’d have to say yes and no. It has some great stuff with great promise, but it still falls flat in some key areas. I look forward to using it for the APIs, but for the raw data I’ll go back to the individual agencies that in many cases are doing a better job of providing access to the data.  Overall the city has come a long way with open data, but I still think the city’s concept of data-as-economic-engine is misguided.  More on that below.

The good

Socrata’s platform is impressive. I’ve blogged about it before, but it’s worth summarizing some of the high points:

  • You can immediately preview the data in your browser (no downloading needed just to see what it contains). And you can view more details about each row in the file — very helpful if you’re interested in one particular aspect of the data.
  • You can visualize  the data in multiple ways — using an interactive map option built into the platform or using one of 9 different chart options.
  • If you want to download/export  a data set, they give you at least 8 formats for extracting/exporting.
  • Short links and “perma” links are available to each data set.
  • There’s a “Discuss”  option where anyone can attach notes and commentary for each data set.  It’s user-generated metadata — you can immediately see, for example, if anyone else has commented about the data’s quality, or completeness, or how up-to-date it is.

The big news with this new approach is the availability of an API for programmatic access for each data set in the Socrata system.  On its face, the APIs look great, and the city deserves kudos for implementing them.  Socrata has developed a template for developers to hook into the data — either row by row, selected queries, or to view metadata — and the template also provides data publishers with guidance on how to structure their data for automated consumption.  And, it seems that DoITT has created web services for the mapped data sets, which is a big step forward.

There are other improvements with specific data sets, such as:

  • It looks like the map data for NYC park boundaries is fixed — I posted a detailed review last year about how the parks data via Datamine was basically impossible to use.  I had to scrape the NYC Parks website to convert it to a useful format. But now the park names are included with the park IDs in the same file. (However, this improvement is tempered by the fact that I can view the map of parks on NYC’s Socrata website, but I can’t download the data in a mapped format. I discuss that in more detail below.)

There are some interesting new data sets.  Two things that caught my eye are:

  • School zones are included in the data, which is something I had urged the city to include [PDF] when the BigApps competition was first announced in 2009.  (School zones are the key determinant as to where your child can attend public elementary school, rather than the administrative school districts.)  But the earlier version of Datamine included school zone boundaries, so this isn’t really new.
  • HPD Registrations.  Unfortunately the data dictionary accompanying this file can be cryptic, so I couldn’t easily decipher exactly what the file includes. But it seems to be a list of almost 140,000 buildings in the city registered as “multiple dwellings” along with each building’s landlord/owner, managing agent(s), and building details.  Should come in pretty handy for anyone interested in the landlord landscape in New York.

Here’s an example of why the data dictionary is not very helpful – the excerpt below is trying to tell us what the “REG-INDV-HM-UNIT-NO” field means:

Um, what?

I thought it was also intriguing (in an insider baseball kind of way) that the interactive maps used at the NYC Socrata site to show mapped views of the data are from ESRI.  And the API/web services provided for the mapped data files are ESRI-based.  DoITT’s GIS unit has made a point of using non-ESRI technology for its interactive maps (Citymap, Scout, ZoLA, etc). But the GIS web services for Socrata all come from DoITT.  Wonder what’s happening there.

The not-so-good

The Mayor’s news release about the new Socrata site proclaims that more than 230 new data sets are included. We don’t get any details about which ones; the release simply says that:

Examples of this new data include a directory of HHC Facilities; electricity, gas and steam consumption available by zip code; and school attendance and report statistics.

But I looked pretty closely at what new data sets I could find, and I was hard pressed to identify more than a few dozen.

Examples of old data masquerading as new simply because it’s available through the new Socrata site include many of the files from NYC’s Dept of Finance, such as:

  • Condominium comparable rental income listings (38 individual datasets);
  • Cooperative comparable rental income listings  (40 datasets); and
  • Summary of Neighborhood (Property) Sales (21 datasets).

That’s almost 100 data sets right there, close to half the number the city says are newly available.  But each of these have been online, for free download, at Finance’s website for several years.  This page notes that coop sales information has been available since 2006, and Finance started making the data available for batch download a couple of years after that.  The Neighborhood Sales data was put online a couple of years ago.  And Finance’s website has more thorough information about the data sets and how to use them than the Socrata site.

Other not-so-new examples include:

  • Street centerlines.  These are from DoITT circa 2009. In contrast, the City Planning Department “LION” file at DCP’s website is from September 2010, and is updated regularly.
  • Building perimeters. From DoITT circa 2010.  But DoITT has a more recent file at their website for direct download (click through the online agreement and you’ll find building footprints from March 2011).
  • Coastal boundaries. From City Planning, but this was posted on the Bytes of the Big Apple site last month.  Great data set, but not new.
  • Campaign contributions. From the NYC Campaign Finance Board.  The data is current (covering the 2013 election cycle), but the files are already available in batch format and via a searchable website from CFB.
  • Landmarks data. There are multiple, conflicting data sets at the NYC Socrata site regarding landmarks.  For example, one data set of “NYC Landmarks” is from 2009, another (called “LPC Landmark Points”) is from 2010.  Either way, there have been several new landmarks and historic districts designated since then by the Landmarks Commission.

Even if there was only one new data set in the new Socrata site, that’s better than nothing. But there’s so much data maintained by city agencies that is still not easily, publicly accessible.  My blog post when BigApps was first announced in 2009 has a listing of some key data files that still haven’t seen the light of day.

The city should be doing a better job — especially since there’s been so much pressure on them to improve their open data policies, they have an avowed policy of doing so, and they’re also under a state law (FOIL) to require them to do so. Frustrating.

One of my biggest and longest standing gripes is about property data.  There are a number of property-related files the NYC Socrata website.  But nothing that allows us to come close to the City Planning Department’s “MapPLUTO” dataset.  The city still charges a fee (up to $3,000 per year) with a restrictive license agreement in order to access the PLUTO data — a mapped file of all properties in NYC with a wealth of information about each one (zoning, ownership, building heighs, land use categories, assessed value, etc).  It’s an essential data set for anyone trying to understand real estate, urban planning, neighborhood change, and more in the city.

When will City Planning get it? They’ve done such a great job of making other data sets available — files they used to charge for but now provide for free, and in better formats, with great metadata, and updated frequently.  The agency obviously spends a lot of time preparing these other data sets that are freely available, so I don’t buy the argument that the PLUTO fee covers their “costs” of doing extra work to put PLUTO together.  I just don’t understand.  And property data is so incredibly useful in NYC — certainly to the big real estate players, but I’m not concerned about them.  If it were free for everyone, at least we’d have a chance at a level playing field — helping “the little guy” do property analysis and mapping so he/she can analyze land use, understand policy implications, etc.

Data for people, not just machines

Data access — at least in this first iteration of the new Socrata site — seems to be weighted toward APIs, and therefore app developers. I understand the value of the API approach — I’ve developed apps myself, and at CUNY we have online sites that can definitely make use of the APIs. And I was kind of amazed that DoITT opened these up.  So the APIs are good, and perhaps they’re worth the effort to create and maintain a one-stop-shop like NYC Socrata.

But for the average user — someone at a Community Board, or a local media outlet, or a City Councilmember’s office — the city’s implementation of the Socrata system seems against them.

For example, with one or two exceptions I wasn’t able to download any mapped data sets from NYC Socrata.  Many files (45 by my count) are described as “GIS datasets”, and they’re obviously in ESRI’s “shapefile” format to begin with, but the “Export” option only provides flat files (CSV, JSON, XLS, XML for example), and not even the now-ubiquitous KML format (used by Google and many others).

If I click the API link for these data sets, this enables me to view the data as map layers in my desktop GIS application.  But I can’t extract any actual data from these links in order to work with it on my own.  The screenshot below (from ESRI’s ArcCatalog application) seems promising, but the inability to download the mapped data itself is very limiting.

It’d be easy enough (I’m assuming) to just add shapefiles to the list of Socrata’s data export formats. The shapefile format (.SHP) is already basically an open one (all the major open source GIS packages read it), so why force GIS users to do extra work to access GIS data?  And why have DoITT go through extra work converting from SHP to something else, just to have the user convert it back again. For “point” locations this isn’t a big deal — it’s easy enough to convert latitude/longitude coordinates into a mapped data set.  But this isn’t straightforward at all for polygons (district boundaries, for example) or lines (streets, transit routes, etc). I’m not saying don’t provide the data in the other formats, just add SHP to the list where appropriate.  (Some GIS datasets are available as GIS downloads: school zones, for example. But this is an exception, as far as I can tell.)

Indeed, not having GIS-ready formats is a step backward. If I visit the City Planning Department’s “Bytes of the Big Apple” website, I can download a wealth of files in GIS format, and several of them are updated regularly. It’s great. Hopefully the NYC OpenData site doesn’t supplant the individual agency sites. For now, they’re better for me, and I’d imagine they’re better for many other users.

And having the raw data, rather than just API access, gives users more flexibility.  For example, during the preparation for Hurricane Irene, several organizations downloaded NYC Datamine files in GIS format to create interactive maps of evacuation zones and evacuation sites.  (And these groups helped the city in a big way because the city’s own maps and website were down, making it difficult if not impossible to get essential information from NYC.gov.)  But the city changed several of the evacuation sites just a day or two before the storm was going to hit.  If the outside organizations didn’t have the raw data that we could update ourselves, our presentation of the evacuation sites would’ve been incorrect and misleading.  I wouldn’t want to rely on the city updating its API in a crisis situation like that, given how rocky the city’s digital response was to the storm itself.

Tying open data to app competitions & economic growth is the wrong approach

(Note: my concern here still stands, but the city has modified its position a bit, which is great.  See the 10/13 Update above.)

I think the real issue here is that the city’s open data efforts are being driven more by the desire to use data access as a way to leverage economic development, and less about true government transparency.

For example, as with the first two BigApps competitions, no new data files will be added to the Socrata site until the latest BigApps competition is over (see section D.1 at the official rules).  Why wait?  Why should app developers get preference?  What about the rest of us? Is NYC providing data just so app developers can do free work for the city, and so the city can make a news splash about open data? Open data should be open 24/7 — and should be updated on a regular basis — not just when it’s convenient for the city and for developers.

Next steps

I understand that the new NYC Socrata site is a work in progress, and will almost certainly be improved going forward.  But for now, although it includes lots of data, much of this has already been available elsewhere.  The APIs are intriguing, but I hope they don’t preclude other ways for people rather than machines or apps to access the data.

At this point, with few exceptions I still would prefer to go to the individual agency websites (or even talk to agency staff and request the files via email, or even via disks & snail mail!) to get the data — from what I’ve seen so far, chances are it’ll be more timely, in better quality, and I’ll have better access to metadata/explanations of the files.

I’m even wondering if instead of a Socrata-like site, it might not be better to encourage the agencies directly responsible for creating the data to continue efforts to provide public access, and having them engage with people using the data so they’d see the benefits of open data (and/or realize that it’s not so bad to provide access to their files to the broad public in easily accessible ways).  At the least, the new NYC Socrata site shouldn’t preclude this agency-specific work to be done.

I’ve already had a good, late-night exchange on Twitter with DoITT on some of these issues. I’ll be submitting feedback directly at the Socrata website.  And hopefully the dialogue will continue.

NYC bikeshare maps & spatial analysis: an exploration of techniques

UPDATE (Feb. 2012)

  1. Reader Steve Vance suggests in the comments below that I could use Google Refine to parse the JSON file and convert it to Excel without relying on the tedious Microsoft Word editing process I summarize below.  He’s right.  Google Refine is amazing. It converted the JSON file to rows/columns in about a second.  And it has powerful editing/cleaning capabilities built-in.  Thanks Google!
  2. Alas, I had hoped to test Google Refine on the latest list of user-suggested bikeshare stations.  But when I checked in mid-February, the link at http://a841-tfpweb.nyc.gov/bikeshare/get_bikeshare_points no longer returns all the detailed info about each suggested site.  It only returns an ID and lat/lon for each site.  There’s another link I found that returns the details (http://a841-tfpweb.nyc.gov/bikeshare/get_point_info?point=1), but it seems to be just one at a time (change the “point=1” value).  Sigh.  If someone wanted to replicate what I’ve done with the latest data, perhaps either NYC DOT or OpenPlans could provide the file directly.

Original Post (Sept. 2011)

Two weeks ago New York City announced an ambitious bikeshare program, designed to provide 10,000 bikes at 600 bike-sharing stations in Manhattan and parts of Brooklyn by next summer.  I had two immediate thoughts:

  1. I wondered if all 10,000 new bikers will ride like delivery staff and further terrorize me and my pedestrian 5-year olds; and
  2. safe or not, the bike stations would be put somewhere, and maps can likely help figure out where.

I’m a cartographer, so I’ll focus on the second issue for the purpose of this blog post. My maps and analysis below don’t provide any definitive answers — they’re more of an exploration of spatial analysis techniques using the bikeshare data as an example.  I don’t know if this will be helpful to DOT, but if it is, then that’s great.  If not, hopefully at least they’ll be of interest to GIS and biking geeks alike.

NYC’s bikeshare stations: crowdsourcing suggestions

To help figure out where the bikeshare stations might be located, the city’s Dept of Transportation partnered with OpenPlans to provide an interactive map where anyone could suggest a location and provide a reason why they thought it was a good spot. If someone has already picked your favorite spot on the map, you can select that marker and click a “♥ Support Station!” button to register your approval.  Added up, these supporting clicks can provide a “rating” of how many people like each location.

It’s a great, easy to use app. Within just a few days several thousand people had posted their suggestions.  According to DOT,

As of September 20 at 3:30pm [just 6 days after the suggest-a-site went live], we have received 5,566 individual station nominations and 32,887 support clicks.

(via OpenPlans)

But the map looked overwhelmed! Manhattan was covered, as was most of downtown Brooklyn.  It seemed like almost everyone wanted a bikeshare station on their block.  New York Magazine put it this way:

As you can see in the map above, New Yorkers have spoken: The best spots for bike stations are … everywhere/wherever is right next to them.

I wondered how useful this crowdsourced data actually would be for identifying the best sites for bikesharing stations.  NYC DOT says it will be conducting “an intensive community process” to involve multiple stakeholders in helping decide where the 600 stations will go.  Presumably several factors will determine station locations, but it seemed like the crowdsourced data could play a key role — hopefully the website was more than just a PR ploy.

Given all those “dots on a map,” it seemed like a good opportunity to examine how spatial analysis tools could be used — first to see if the crowdsourced location patterns meant anything, but then to see if there’s any value to using them in siting analysis.  Had “the crowd” told us something new and useful, or was it something we already knew and would be better determined through DOT’s public process?

Spatial patterns

Luckily OpenPlans (and DOT) designed the suggest-a-station website so all those dots on the map could be scooped up via a simple HTTP request and converted to GIS format.  At the end of this post I describe how we got the data and put it into a mappable format.  Once we did, we were able to analyze it spatially.  I’ll post the shapefile, as well as a version at Google’s Fusion Tables, shortly.

A few days after the program was announced, DOT produced a “heat map” that “illustrated the number of suggestions and supports per square mile as of September 19” (map at right).

Our version of a “heat map” using the September 19 data (based on the results as of 9am that day) is shown below.  (Our map uses the same rating scale as the DOT map, but its slightly different patterns could be due to different model specifications to create the map.  We used ArcGIS’s “Kernel Density” function to develop our map — DOT may have used a different method. Even if we both used kernel estimation, this technique can result in different surface patterns based on different inputs such as cell size and search radius.)

But do these maps really tell us anything useful? Some people tweeted that the concentration of suggested bikeshare sites matched New York’s “hipster” population.  Others said that the patterns were “almost perfectly congruent with race/class/culture divides” in the city.

I disagree — I don’t think the suggested bikeshare patterns match any obvious demographic characteristics, whether it’s race/ethnicity or “hipsterism”.  (This may be worth pursuing further, but for now I leave that to others.)

I think a more likely relationship is based on where people work.  The orange-to-red areas on both maps — indicating a high concentration of suggested bikeshare sites with high ratings from website visitors — match the locations of the city’s commercial areas: Manhattan below 59th Street and downtown Brooklyn.

Another possibility, though, is that people who suggested bikeshare locations were just following DOT’s preferences – a spatial version of survey response bias.  In its bikeshare FAQ, DOT says that phase 1 of the program will focus on the following areas:

Manhattan’s Central Business District and nearby residential areas, including Brooklyn neighborhoods of DUMBO, Downtown, Fort Greene, Bedford-Stuyvesant, Williamsburg, Greenpoint and Park Slope

The NYC Planning Department produced a map of these areas in a Spring 2009 report [PDF] as follows:

Superimposing the Phase 1 area on the rating density map above shows that there’s almost an exact match between Phase 1 (outlined in dark pink) and the highest concentrations of suggested/supported sites (the dark orange and red areas on the map):

So based on these density maps (“heat maps”), it’s not clear if the overall patterns from these maps tell us anything interesting about the wisdom of the crowd, or useful about where to put bikesharing stations.

Digging deeper

But whether the overall patterns mean anything or not, maybe the suggested locations could be analyzed to see if they have value as criteria for local siting decisions. In other words, within the patterns, maybe we can use the crowd’s suggestions as a key piece of analytic information, providing quantifiable indicators about where the stations should go.

More than 2,700 bikeshare locations (as of Sept. 25) were suggested within the Phase 1 area — four and a half times the 600 sites that will eventually be sited.  Perhaps they covered every possible bikeshare site. But perhaps there’s also a pattern (or patterns) to the suggestions that will help with the decision to whittle 2.700 down to 600.

For simplicity’s sake I evaluated the suggested station locations against one criteria — proximity to subway station entrances.  Obviously there are other factors to examine (threshold bikeshare station density, proximity to specific residential or employment centers, terrain, etc).  But several people have noted that a bikeshare program can extend the reach of subways — transit riders could ride to a distant subway more easily, cheaply, and quickly than a bus or a cab, or when they reach their subway stop they could pick up a bike and ride to their final destination without the hassles of a cab, etc.  So my assumption is that proximity to subway stations will be a key factor in determining bikeshare station locations.

But how do the suggested locations from the DOT/OpenPlans map compare with that hypothesis?  Are the highly rated bikeshare sites near subway stops?  About 10% of the suggested sites included reasons that mentioned subways.  Did website visitors suggest enough bikeshare sites near subways to make it easier for DOT to pick and choose which ones are best?

(Btw, this same type of analysis can be applied to bike routes, for example.  I just wanted to focus on one component for now.)

Spatial analytics

I used several spatial analysis techniques available through ArcGIS’s toolbox to shed some light on these questions.  The tools are powerful, and ESRI has made them easy to use and interpret.  The tools also underscore the power of GIS beyond making maps — extracting information based on the spatial relationships of multiple geo-referenced data sets.

In order to compare suggested bikeshare sites with subway stations, I used the file of subway entrances/exits available from MTA (current as of July 19, 2011).  The file provides the latitude/longitude of 1,866 entrances and exits, identifies the station name for each one, and lists the routes that serve these stations.  It provides a more precise spatial measure of access to the subways than a single point representing the center of each station (which is how stations are shown on most interactive and print subway maps).

With this file, we can determine how close each suggested bikeshare site is to the actual spots where people exit and enter the subway system.

To calculate proximity, I used the “Near” feature in the ArcGIS Toolbox, which “[d]etermines the distance from each feature in the input features to the nearest feature in the near features.”  I analyzed 5,587 suggested bikeshare sites based on the DOT/OpenPlans map as of Sept. 25 (see data discussion at the end of this post). Here are some statistics:

  • 92 sites were within 25 feet of a subway entrance;
  • fully one-third (1,954 suggested sites) were between 25 and 500 feet of a subway entrance (the length from one Manhattan avenue to the next is usually about 600 feet);
  • another quarter of the sites (1,677) were within 500 and 1,250 feet (1250 ft being roughly a quarter mile, the rule-of-thumb distance that people will walk for public transportation); and
  • the remaining 2,134 were more than a quarter mile from a subway entrance.

Seems like lots of bikeshare stations were suggested in close proximity to subway entrances. If the actual bikeshare sites will be near subways entrances, which entrances should we pick?

(An aside: since just over a third of suggested bikeshare sites were located relatively far away from subway entrances, we can also evaluate these patterns.  The hypothesis would be that if people are picking up bikes at subway stations, they’re using them to travel to destinations further away from subway stops.  Therefore some of the bikeshare sites will need to be located in these “destination” areas, and DOT will need some spatial criteria for locating them.  I’ll save this for a follow up blog post.  Thanks to Kristen Grady for suggesting it.)

One way to visualize the bikeshare/subway entrance relationships is with the following map, showing the subway stations in blue (just a center-point representing the middle of the station) and the bikeshare sites color-coded by proximity (I’ve limited the display of bikeshare sites to only those within 500 feet of a subway entrance so the map wasn’t too cluttered):

This map might be helpful, but you have to visually decide which clusters of close-by bikeshare sites are the most concentrated in order to prioritize which subway stations to focus on.  The map also omits the rating values.

If we incorporate ratings, the map below is an example of the result.  It only shows bikeshare sites very close to subway entrances — within 50 feet — and ranks the symbol size based on rating.  (We could just as easily pick another distance threshold, or display several maps each using a different distance threshold.)

This helps us focus on which subway stations might be best for a nearby bikeshare station, based on suggested bikeshare sites nearby that are ranked highest.

But we can use GIS to be more precise.  Another approach would be to visualize the pattern of the subway entrances themselves, based on average rating of each entrance’s closest bikeshare sites.  In other words, I’d like to use the ratings given to each suggested bikeshare site and assign those ratings to their closest subway entrances.  This will have the effect of combining subway proximity with bikeshare rating, and the resulting map will integrate these patterns.

Here’s an example of the result, with the rated subway entrances juxtaposed with the density map of rated bikeshare sites from earlier in this post:

This map says, “If you want to put bikeshare stations near subway entrances, these are the entrances you’d pick based on the average rating of the closest stations suggested by ‘the crowd’.”  It’s a way of prioritizing the bikeshare station siting process.  These subway entrances are the ones you’d likely start with, based on the preferences of the (bike)riding public who contributed to the DOT/OpenPlans map.

It looks like many subway entrances follow the overall pattern of bikeshare sites with the highest ratings. But there are some interesting differences in the above map. A couple of sites are completely outside the Phase 1 area (an outlier each in the Bronx and Queens), and only two subway entrances with average high ratings are in Brooklyn. The rest are in lower Manhattan. But only one of the Manhattan sites is near the highest rated area centered around NYU:

Here’s another view of this area, with the rated subway entrances overlain on a Bing street map:

In order to create the rated subway entrance map, I used the Voronoi polygon technique, also know as Thiessen polygons (Voronoi was a Russian mathemetician, Thiessen was an American meterologist.)  Voronoi polygons are enclosed areas surrounding each point (subway entrance) so all the other locations (in this case, bikeshare sites) within the polygon are closest to the enclosed subway entrance than any other entrance.  The subway entrance Voronoi polygons look like this:

Here’s a close up, with the subway entrances displayed as pink stars, and the suggested bikeshare stations as blue dots:

The blue dots (bikeshare sites) within a polygon are closer to that particular polygon’s subway entrance than any other entrance in the city. Other GIS techniques, such as creating a buffer around each subway entrance, or even using the “Near” calculations I described earlier in this post, wouldn’t precisely determine the closest criteria for all the points automatically and at once.

The other nice thing about creating Voronoi polygons is that the attributes of the reference points are transferred to the polygons (the polygons end up with more than just a random ID number; in this case, they include all the corresponding subway entrance attributes).  From there I did a spatial join in ArcGIS, joining the bikeshare sites to the polygons.  This automatically calculates the count of all points in each polygon, as well as statistics such as average and sum for any numeric attributes in the point file.  In this case, each subway entrance Voronoi polygon gets a count of the bikeshare sites within it (i.e., the ones that are closest to that entrance) as well as the summed rating and average rating.

From there we could create a choropleth map of the Voronoi polygons. But since we’re interested in the entrance locations rather than an aggregated area around them, I chose to create a graduated symbol map of the actual subway entrances. So I did an attribute join between the Voronoi polygons and the entrances using the shapefile ID field.  That enabled me to make the “Average rating by subway entrance” map above.

Limitations

One limitation to the Voronoi approach is that closeness is measured “as the crow flies.” There are other techniques that measure proximity using “Manhattan distance” (i.e., distance along streets rather than a straight line), such as ESRI’s Network Analyst extension for ArcGIS, but I’ll leave that to the DOT analysts who are going to decide on the actual bike share sites.

Other limitations of this approach have to do with the data themselves.  The bikeshare data from the DOT/OpenPlans website has issues such as:

  • entries accompanied by fictitious names (some examples from the Sept. 25 data include “Andy Warhol”, “George Costanza”, “Holden Caulfield”, “Lady Liberty”, and “United States”.  One or more people using the “United States” pseudonym submitted 51 entries throughout Manhattan, Brooklyn, and Queens, plus a single entry in the Bronx); and
  • multiple entries submitted by a single person. Someone – or some people – named Ryan submitted 143 entries.  Someone named Andrew Watanabe submitted 85 entries. Ryan and Andrew were the top two submitters.  After them and “United States”, there were 4 others who submitted 40 or more entries. It’s possible that these were all sincere. But some seem to be pretty goofy. Of Watanabe’s 85 suggested sites, for example, several included the following reasons:
    • “When whales accidentally swim into the Gowanus, they will be able to ride bike share bikes back out to sea.” (site on the Gowanus Canal)
    • “This will keep drunk booksellers from passing out on the sidewalk.” (site near the Bedford Ave L train stop in Williamsburg)
    • “When the zombie apocalypse comes, they will be riding bicycles. BRAAAAAINS!” (site in the middle of Mt. Laurel Cemetery in Queens)

Multiple entries might be fine, but if someone started plunking down markers on the map just for fun, this doesn’t really help us with meaningful location criteria.

There’s another concern about the crowdsourced data – the squeaky wheel problem.  The first map below shows the bikeshare suggestion pattern as of September 19; the second map below shows the patterns as of September 25.  The more recent map shows a new concentration of sites at the northern tip of Roosevelt Island (as well as a greater concentration in lower Manhattan and downtown Brooklyn, areas that already were very dense):



Sept. 19 patterns



Sept. 25 patterns

Why did northern Roosevelt Island all of a sudden become such a bikeshare hotspot?  I can’t say for certain.  But in a blog post on September 14 at the Roosevelt Islander, residents were urged to add sites to the DOT/OpenPlans map.  The post ended with the pitch:

So here’s what you can do to bring bike sharing to Roosevelt Island. Click on this link and say you want a bike sharing station on Roosevelt Island – do it now – please [emphasis added]

I don’t think making a pitch like this is a bad thing. (Far from it! It seems to have succeeded in getting attention on bikeshare sites on the island).  But whoever will be analyzing the sites from the DOT/OpenPlans map will need to decide if (and how) they should discount these crowdsourced lobbying efforts so the squeaky wheels don’t skew the map.

Making sense of it all

My analysis in this post is more for illustration than for actually determining best locations for bikeshare stations. A more rigorous analysis would need to deal with the data limitations I mentioned above, and also factor in other criteria.

But it was a fun exploration of the data and the techniques, and hopefully provides some useful ideas if readers are thinking of other spatial analysis projects involving proximity (especially the “closest” criteria).  I’m indebted to DOT & OpenPlans for enabling the creation of an interesting data set — the suggested bikeshare sites — for me to brush up on my spatial analysis skills.

Does my initial exploration shed any light on the wisdom of the crowd? It’s probably too early to tell (or my analysis was too limited to meaningfully evaluate the suggested sites).  But even so, I think the techniques I’ve described are helpful for prioritizing sites and for quantifying the results.  In that respect, the crowd’s input is a good thing.

Data issues, as always

Here are the steps we used to download the suggested bikeshare sites from the DOT/OpenPlans website in order to map and analyze the data:

  1. We used Fiddler to figure out that the suggested station locations were being maintained in a text file (in JSON format) available via http://a841-tfpweb.nyc.gov/bikeshare/get_bikeshare_points (Dave Burgoon ferreted this out).
  2. The JSON data looks like this:
{
"id":"4830",
"lat":"40.742031",
"lon":"-73.777397",
"neighborhood":"Fresh Meadows",
"user_name":"David",
"user_avatar_url":"",
"user_zip":"11355",
"reason":"There is no public transportation from Brooklyn-Queens greenway (Underhill Ave) to Flushing Meadows. By placing bike stations from Cunningham Park thru Kissena Park to Flushing Meadows will allow residents enjoy the parks more.",
"ck_rating_up":"1",
"voted":false
}

I don’t know of a straightforward way to read a JSON file into a desktop GIS package, so I needed to restructure the file into rows & columns.  I chose to do that with a series of Find/Replace statements in MS Word (perhaps there’s a better/more efficient way, but this approach worked), then added a row of field names, and saved the result as a .TXT file (one row of which is shown below):

id,lat,lon,neighborho,username,avatar,zipcode,reason,rating,voted
4830,40.742031,-73.777397,Fresh Meadows,David,,11355,There is no public transportation from Brooklyn-Queens greenway (Underhill Ave) to Flushing Meadows. By placing bike stations from Cunningham Park thru Kissena Park to Flushing Meadows will allow residents enjoy the parks more.,1,FALSE
  1. We’re primarily an ESRI shop at the CUNY Center for Urban Research (with periodic forays into open source, as well as a longstanding reliance on MapInfo for some key tasks).  So my next step was to convert this to a shapefile — which I did by using ArcGIS’s “Display X/Y Points” tool to create a point file based on the lat/lon values.
  2. Just in case there were multiple points at the same location, I ran the ArcGIS script called “Collect Events“, which aggregates point data based on location, and creates a new shapefile of each unique location with a count of all the points at each location.
    • I downloaded the JSON file a couple of times between Sept 19 and 25.  In the latest one (September 25, downloaded at 11pm) there were 55 points at latitude 40.7259, longitude -73.99 (a location at the intersection of E. 3rd Street and Second Ave in Manhattan).  But the user-supplied ZIP Codes and comments for most of these points indicated that they should have been all over the city.
    • Turns out this location is the center point of the Google map that’s displayed at the DOT bikeshare website.  If you zoom in on the DOT/OpenPlans map you’ll bring the map center into close view — and you can see the heavy map marker shadow due to all the points placed at that spot:

    • Presumably what happened here is that when you click the “Suggest Station” button, a marker is put at this spot by default. The marker is accompanied by a note that says DRAG ME! Then click ‘Confirm Station.’  But I’m assuming that 55 people didn’t drag the marker, but just left it there after they had entered their information. (I guess that’s not too bad — only 1 percent of the people using the site didn’t follow directions.)
    • Earlier this week (9/27) it looks like these sites were removed from the live map.  For my purposes, I removed those points from the shapefile, otherwise it would skew the analysis.  I could have put them somewhere in the ZIP Code that was entered with each spot, but I couldn’t be sure of the precise location (the reasons were vague regarding location), and I didn’t want to skew the analysis the other way.
  1. Other data notes:
    • There were 8 locations outside the immediate New York City area – some as far away as Montreal and Portland, Oregon.
    • The reason provided for Portland location was: “Even though it’s a whole continent from NYC it always seems to me like our cultures admire one another. I think NYC would enjoy all the benefits of positioning one of their Bike Share stations in Portland as sign of goodwill and mutual admiration.”
  1. There were also 53 points with lat/lon = 0, which I assumed was just a data entry/processing error.

Out of the 5,973 points as of 11pm September 25, after I removed the 55 locations and zoomed in on the points in or immediately near New York City (and omitting the 8 outside the city and the 53 with lat/lon=0), I ended up with 5,857 points.

NYC neighborhood changes mapped with aerial imagery, historic land use data

Our team at the CUNY Graduate Center has enhanced the OASISnyc.net mapping site with new data and features to visualize neighborhood change across the city. On the eve of the 10th anniversary of 9/11, the updates help provide context for the transformation taking place in lower Manhattan, as well as in other key areas of the city.

I’ve only included some of the highlights below. Our OASIS wiki has more details plus screenshots and other examples.

2010 Aerial Imagery

We’ve added new aerial imagery, thanks to the NYS GIS Clearinghouse. Now you can view overhead images from 2010 (as well as 1996, 2004, 2006, and 2008) throughout New York City and Long Island. (The 1996 imagery is from NYC DoITT, 2004 is from USGS, and the other years are from the NYS GIS Clearinghouse).

For example, you can see what the World Trade Center site looked like from above in 1996, and then in 2006, and more recently in 2010. The overhead images show clearly how the building footprints are reflected in the memorial plaza fountains now under construction.

WTC 1996


WTC 2006


WTC 2010


Visualize Aerial Photo Changes like a Timelapse Movie

We’ve also changed the way you can view the imagery over time. Now you can move the aerial timeline slider across years to transition from one year to the next, creating the effect of a timelapse movie within the OASIS map.


You can move the slider as slow or as fast as you’d like.

A good example of the new timelapse feature is Shea Stadium (now Citi Field) in Queens. The images below illustrate the transition in recent years.

Shea Stadium (2006)


Shea Stadium (2006-08)


Citi Field almost done (2008-10)


Citi Field (2010)


Land Use Changes Citywide

Since 2010, OASIS has provided the ability to display historical land use patterns (for 2003 through 2009). This gives you the ability to easily see how patterns have changed in key areas of the city.

In lower Manhattan, the area around the World Trade Center site has changed substantially in the past 10 years. Of course reconstruction is underway at the WTC site itself, but the surrounding community has become much more residential. The land use maps below from OASIS visualize some of these changes (yellow and orange are residential properties, brown is vacant, and light red is commercial).

North Battery Park City & TriBeCa vacant land (and WTC empty): 2003


Residential towers built, WTC site in redevelopment


The maps below highlight the changes from commercial office buildings to residential towers, such as the block between Broad and Hanover streets & Wall and Exchange streets — especially the JP Morgan Building at 15 Broad St and the National City Bank Building at 55 Wall St.

Financial District commercial property circa 2003


Replaced by residential by 2010


More Community Data

The latest example of linking mapped information from grassroots groups is the layer of skate parks in the city by longtime OASIS partner Open Road of NY. (The OASIS community mapping effort is based on Google’s new Fusion Tables service; more info here.)

Here’s the link to the map on OASIS, and the original Google map from Open Road.

We’ve also added the locations of stalled development sites across the city (based on a map from Crain’s New York Business), and the city’s hurricane evacuation centers (more on that here).

Coastal storm impact risk mapped in NYC

UPDATED (Monday, Oct. 29, 2012 1pm)

If you need to locate any of NYC’s 76 hurricane evacuation shelters, you can use the OASIS mapping site.

You can also use NYC.gov to find out the latest with Hurricane Sandy.


UPDATED (8/25/11 9am): We’ve added a temporary map layer on OASIS showing the locations of NYC’s hurricane evacuation centers. Here’s the link: http://bit.ly/oBsUY8 . It’s easy to use:

  • Hover your mouse over each one to highlight it (the site details will also be highlighted in the panel on the right).
  • Click on a map marker to bring the site details up to the top of the list.
  • Double-click on a site in the list and the map will zoom in right to that location.

You can type in your address above the map to see if you’re in an area that’s at risk of storm impacts, and how close you are to an evacuation center. The OASIS map automatically also shows any nearby subway stations. And you can add any other layers from the Legend list to the right of the map.

For more information about Hurricane Irene and what you should do to prepare, visit NYC’s website.

UPDATED (8/24/11 12 noon): We’ve expanded the map layer showing hurricane impact zones throughout the downstate region. It now shows potential impact zones on Long Island’s south shore, as well as some areas along the coast of the Long Island Sound.

ORIGINAL POST

For the past several years the www.OASISnyc.net mapping site has displayed a map of “coastal storm impact zones” in New York City (in addition to the wealth of other mapped data included with OASIS). This coming weekend, it seems like the coastal storm map may be especially useful with city officials bracing for the risk of Hurricane Irene bringing 72 mph winds or more to the NYC region by Sunday.

In 2005, the New York State Office of Emergency Management developed a map of areas that would be at greatest risk of hurricane impacts based on wind speed and other factors. The shorthand for the map is a “SLOSH” map, because the zones of impact are based on NOAA’s “Sea, Lake and Overland Surge from Hurricanes” (SLOSH) model projections of vertical surge heights associated with category 1 – 4 storms.

In 2006, we downloaded the SLOSH data from the NYS GIS Clearinghouse website (metadata here), and used the following color shading to represent the zones:

  • A Category 1 storm (impact areas shown on the map in yellow) means winds of 74-95 mph.
  • A Category 2 storm (impact areas shown on the map in light orange) means winds of 96-110 mph.
  • A Category 3 storm (impact areas shown on the map in dark orange) means winds of 111-130 mph.
  • A Category 4 storm (impact areas shown on the map in red) means winds of 131 mph or more.

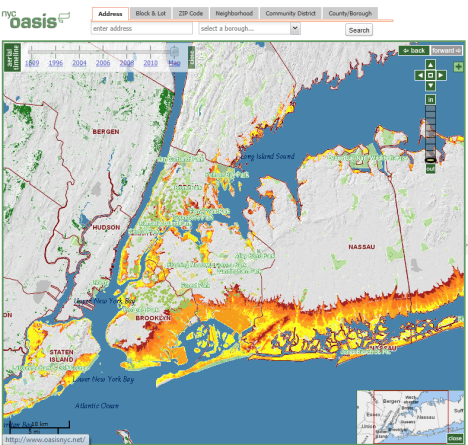

Here’s the map:

Through the OASIS website, you can easily enter your address and find out if you’re in an area that might be at greatest risk of the hurricane, depending on how severe the winds are by the time Irene moves up the coast. But the real power of OASIS’s maps is that you can do much more. For example, you can:

  • customize the OASIS map to show transit routes, schools, public housing, and libraries in or near the zones;
  • use OASIS’s mapping tools to see areas near the zones that have been recently developed (using the 1996-2010 aerial image timeline tool);
  • zoom in to see individual property boundaries and click on each one to determine ownership, zoning, and land use characteristics; and
  • find out which elected officials represent the area, as well as the local Community Board (good sources for planning and safety resources).

In the images below, I’ve used the aerial timeline slider and the dynamic transparency tool to show recent housing development in an area at risk of impact from a Category 1 storm, along South Beach on Staten Island (at the OASIS website, you can click and drag the name of any map layer in the Legend to the “Transparency Control” box at the bottom of the legend and make it more or less transparent, so the layers underneath can shine through):

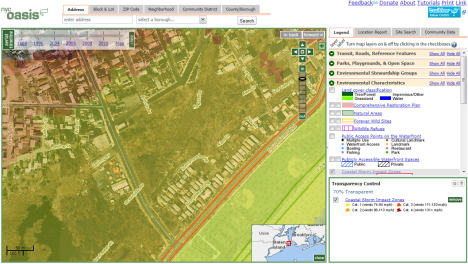

Sparse housing near the beach (1996)

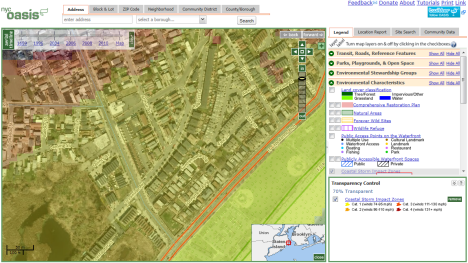

Dense housing development (2010)

The zones mapped on OASIS closely mirror the city’s hurricane evacuation zones (mapped here [PDF] and described here). The city also provides a Hurricane Evacuation Zone Finder where you can enter an address and get useful safety tips depending on your zone.

The message: hopefully Irene passes us by, but if not: be prepared. Better safe than sorry.

On the lookout for ‘open data fatigue’ in NYC

I watched today’s news event by New York City’s Mayor Bloomberg and his colleagues about the city’s new “Digital Road Map” [PDF]. Impressive effort, including the livestream webcast.

But I thought the Twitter stream during the Mayor’s webcast was especially interesting. Seemed to me that there were just as many tweets about real-world problems (potholes, cops on the beat, subway service, etc) as there were about the technology announcements themselves. The technology is cool, and I agree it’s critically important for the city’s competitiveness, but it needs to be considered in the context of the substantive issues of improving city services, quality of life, engaging real people, maintaining a robust economy, etc.

I always worry when I see the city touting its technology efforts without also including local Community Boards, neighborhood groups, business advocates, urban planners, other elected officials, etc. who rely on access to public data so they can hold government accountable and do their jobs better. In my view, these groups need the data moreso than app developers. That is why open data efforts and policies are so important.

[Editorial update: I realized that in the preceding paragraph I omitted a critically important constituency regarding open data: the media.  I was thinking back on the many FOIL request I’ve made and various lawsuits I’ve been party to and hundreds of data requests I’ve made over the past two decades in an ongoing effort to pry loose public data sets from government agencies.  But I realized even that my longstanding involvement in data access efforts pales in comparison to the work done day in and out by reporters, editors, and journalists to not only further the open data cause, but just to do their jobs.

Media organizations absolutely rely on unfettered access to public data so they can shine a light onto government activities and educate us all about what our public officials are doing, perhaps especially when those officials don’t want us to know.  So when we think about improving city (and state and federal) government by developing a “digital road map”, the Foursquares and Tumblrs of the world are just distractions.  Provide unprecedented access to government data for the press — and bloggers and tweeters — and that will do more for better government than any number of Facebook pages, Foursquare check-ins, or officially-sanctioned NYC hackathons.]

But the city seems more focused on apps than on community. I understand the economic development appeal of fostering startups. But the open data movement long predated apps.  I highlighted this in my post last year (see the “Misplaced Priorities” section).

Apps are great (I use them constantly, and I’ve even developed one myself). And kudos to the city and its agencies for responding to app developers and making data more open so the developers can do great things with the data (things even the city might not do).

I just hope the latest announcements by the city will result in more real and lasting efforts to make data easier to access than the latest check-in craze. The Mayor already expressed some hesitation to making data accessible when a reporter asked him about CrashStat. CrashStat is a great example of my point — it wasn’t created to be an “app” per se; it’s an effort by a local nonprofit group to use public data to educate the public and hold government agencies more accountable about traffic injuries and fatalities. But the Mayor said he didn’t even know what CrashStat was, while making excuses about not making data available if it’s not in electronic format, or needs to be vetted, or is “sensitive”.  Blah blah blah – we’ve heard all that before and it undermines my confidence in the city’s pronouncements that more data will really be made open.  (I’d link to the city’s webcast at nyc.gov but it stops right when the Q&A begins.)

(In the livestream video, the Crashstat question comes at 27:00, and the Mayor acknowledges he doesn’t know what it is at 27:10. Thanks to Joly MacFie for the video link.)

So who knows, if the Mayor starts actually using Foursquare more and experiences ‘check-in fatigue‘, maybe he’ll eventually get ‘open data fatigue’ too. Let’s hope he stays as vigorous about public data access as he and his agencies say they will.

(photo via TechCrunch from IntangibleArts)

Open data in NYC? That’s so 2009.

Last fall I had high hopes that New York City would loosen the shackles that agencies too often held tightly around “their” data sets.  The city’s BigApps competition had just been announced, the new Data Mine website was launched with many data sets I never imagined would see the light of day, and the city (i.e., the Mayor’s office and his agencies) seemed to be jumping on the open data bandwagon.

These days, I’m less optimistic about NYC’s #opendata efforts.  Sure, there are bright spots (DOT, MTA, some aspects of City Planning’s Bytes of the Big Apple).  But for the past several months I’ve been hearing rumors that Data Mine will be updated “soon” and “any week now”.  So far, nothing new on the site — data is still from 2009.  I’ve also been hearing that Data Mine will be updated when the next BigApps competition is announced.  Maybe that’ll happen, but even if a new BigApps prompts the city to update Data Mine, that’s problematic – I explain below.

Words …

When Mayor Bloomberg announced BigApps, he made a big deal of how the city would be “providing information to New Yorkers as fast and in as many ways as possible” and of helping entreprenuers use city data to “increase accessibility and transparency in City government, generate jobs, and improve the quality of life for New Yorkers.”

And since then, the city’s own information technology agency indicated it would usher in a sea change in how city agencies made data publicly accessible.  This was somewhat buried in DoITT’s “30 Day Report” (issued Feb. 2010), but page 29 featured a section titled “Open Data/Transparent Information Architecture”.  It said [PDF],

In 2010, DoITT will work to establish citywide policies around “open data.” These efforts will align with Mayoral initiatives of openness and transparency, and further improve access to information by creating citywide standards that are practical and feasible. As a start, City agencies should be required to make available, to the greatest extent possible, all public‐facing data in usable electronic formats for publication in the NYC DataMine. This mandate would apply to all public data that is not subject to a valid restriction, such as public safety or personal information.  City data is by and large the property of the people it serves, and DoITT will be at the forefront of continuing to make it available in as many ways as possible. [Emphasis added.]

Note that this policy was meant to be only a beginning, and that DoITT would be “at the forefront” of aggressively making public data widely available.

… vs. action

The Data Mine website was launched in October 2009.  Most of the data sets at the site had a vintage of 2009 (and some were substantially older — for example, NYC Economic Development Corporation provides geographic data sets that are “based on PLUTO 2005” [PLUTO is the city’s tax parcel data]).

The Data Mine website itself claims that it will be “… refreshed when new data becomes available.”  The data update frequency for many data sets on Data Mine is listed as daily (such as detailed school information from Dept of Education and traffic and parking data from Dept of Transportation), monthly (recycling rates from Dept of Sanitation), or quarterly (most of the geographic data from the Parks Department).  Others are listed as “annually” or “as required”, but the “as required” data sets include NYC landmarks and historic districts (several of which have been updated since Fall 2009) and 311 data.

Even though some of these data updates are already publicly available directly from the individual agencies, Data Mine — as the city’s portal to public data access — hasn’t kept up.  And it appears that Data Mine is really just an adjunct to the city’s BigApps competition, which is focused primarily on application development (and the resulting economic development from these apps), not so much on transparency and open data access.

For example, testimony from DoITT’s commissioner at a recent City Council hearing for Intro 029 (a bill requiring city agencies to provide formalized open access to their data) was revealing.  Among other things, she explained that the Mayor’s office would wait till the next iteration of the BigApps competition before updating the Data Mine website with new data sets.  (Note that this is the same Commissioner who issued DoITT’s 30-day report cited above.)

The commissioner’s presentation starts about 9 minutes into the clip below.  Here’s her testimony [PDF].  Another disconcerting point she made in her comments was that the Mayor’s office wanted to put a priority on data that they believed had value to the public (rather than posting data regardless of how the public might use it or value it).

Vodpod videos no longer available.

Misplaced priorities

Linking Data Mine to BigApps has at least two problems.  The first is: Why wait?  Some agencies are already taking steps on their own to publish data and update it regularly (such as City Planning and Transportation).  I don’t see any reason to delay updates to Data Mine.  Otherwise the site is stale, and sends the wrong message.

In this era, it’s a no-brainer to make data widely and easily available, given all the amazing things people are doing with public data (helping reduce costs, promote economic development, enhance quality of lifeimprove government efficiency, etc).  As one blogger put it, “there’s really no reason for the city to spend the time to ‘discuss’ when the city could spend the time to ‘do’.”

The other problem is that we shouldn’t have to rely on a competition to make data publicly available.

Remember that when the state’s Freedom of Information Law (FOIL) was first enacted (in the mid-1970s), “apps” didn’t exist. It was all about accountability. The public had a right to know what its government knew — and to have easy access to that information so we could evaluate legislative, executive, and regulatory decision making.

Actually, the “legislative declaration” to FOIL in New York State makes a bolder statement: that public awareness of government actions is essential to maintain “a free society”. FOIL also emphasizes that people will (hopefully) understand and participate more fully in government when they know fully what their government is up to.

So apps are cool and powerful, but open government and open data goes much deeper than the latest iPhone app to find the best parking spots.  The more the city ties public data access to app development and competitions like BigApps, the more they veer away from facilitating the public’s fundamental right to know.

App competitions also take attention away from the vibrant community of nonprofits, neighborhood planning groups, Community Boards, and others who want to improve quality of life in the city and steer a progressive course when it comes to local development and citywide policies.  Not to mention the mainstream media and bloggers.  These players may not be developing apps, but they’re doing good work in other ways.  Information access for these groups and individuals is vital.  Some city agencies are smart and know how to work strategically with these groups to move good policies forward.  But too often agencies hunker down and get defensive, and don’t want anyone to have access to data.

Clay Johnson, former director of Sunlight Labs, also makes this point at his “InfoVegan” blog.  And even some BigApps competitors noted the downsides of relying on a competition to made public data accessible.

A better approach

I think the city’s open data efforts would be greatly enhanced by:

  • passing the City Council’s Intro 029;
  • opening up more data (things like property data that are still restricted by a license and access fees);
  • redesigning Data Mine as a pointer to existing agency data repositories; and
  • ensuring that public data sets are refreshed as often as practical.

Of course, we can’t place our faith in just putting the data out there.  It still takes people making policies and actual improving things. It still takes an educated public to take action, etc. But having more data, as long as it’s not in closed formats and is widely accessible, is a good thing.

(Disclaimer: my viewpoints on this blog are my own, not necessarily my employer’s.)
