UPDATE Oct. 5, 2015: See this post for updates to the GIS files described below, including the new Hudson Yards subway station and 7 line extension.
As promised, I’ve created an updated GIS data set of subway routes in New York based on MTA’s latest GTFS data, which I’ve posted below for anyone to use. (I’ve also converted the latest MTA GTFS data to GIS format for NYC Transit bus routes, following up on my earlier post this spring.) Scroll to the end of this post for the links.
I hope my effort provides a template for creating a map layer for apps and/or printed maps that approximates the line symbology on MTA’s map, but improves on this map in several ways — the GIS version is spatially precise, scalable, and may even look better than what Google uses for its transit layer in New York City. The images below show the map zoomed out and zoomed in, and the post below explains how I did it.


Going forward, hopefully the MTA itself will provide subway route GIS data in the format I’ve described below (or something similar) alongside the GTFS data. Any feedback or suggestions for improvement will be much appreciated.
Context
After reviewing the GTFS data files in detail, it became clear that GTFS is not necessarily applicable for displaying transit lines on a map and/or analyzing the spatial patterns with GIS. At least that seems a fair characterization regarding the GTFS version of the city’s subway system.
Even though the GTFS files include a “shapes.txt” file for subways (the spec says this is for “drawing lines on a map to represent a transit organization’s routes“), this is only helpful for basic line representations. This seems to work fine for bus routes. But for subways, either the GTFS structure or MTA’s implementation of it poses challenges for creating a map layer of subway lines.
New York’s subway system includes local and express routes that are composed of inbound and outbound trips along the same line, some of which may start or end at different stations. And there are “skip-stop” trains and “trunk” lines (where multiple routes run on the same set of tracks, such as the E, F, M, and R in Queens from Jackson Heights to Forest Hills). But the GTFS “shapes” data from MTA only provide a partial representation of this complexity.
To attach route IDs to the “shapes” file, shapes.txt needs to be linked with trips.txt based on shape_id. But doing so causes the 1, G, and latest version of the M line to drop out, because the trips.txt file does not include any trip entries for these routes. Also, for some reason, it results in the inclusion of lines that aren’t used anymore (at least for passenger trips, as far as I know).
This is just an early iteration of MTA publishing its GTFS data, so I’m not surprised these limitations exist. Until these issues are fixed, we have to rely on workarounds. For example, the MTA has provided a separate shapefile for the 1 and the G (see earlier discussions at the MTA Developer Resources listserv). According to MTA,
We [MTA] do not have shape data for these lines because of changes in their station configurations have occurred since we lost the staff member who had created the data. We have not had funding to replace him and update the data from 2008. We can provide the data next week with a hand-done solution, and/or better data at some later time, when we are able to acquire the staffing to do so.
This undermines the idea of using GTFS as a “feed” (as its name implies) for automatically displaying subway lines on a map, but hopefully the process will be more seamless as the issues are worked out.
But the
and
lines are not really missing from the GTFS data. The GTFS “shapes” file on its own (without filtering it based on the “trips” file) includes line segments for virtually the entire subway system. It’s just a question of being creative with combining the trip_id and shape_id fields from the trips.txt file to extract the appropriate geometry for the routes in question. For example, the correct G shape is certainly there; it’s denoted by the “G..N05R” or “G..S05R” shape IDs. It just so happens that there are no records in the trips.txt file with these shape_id values. But it’s easy enough to create a new “route” field in the shapes file and populate it with a combination of values from the “routes.txt” file and manual entries for the lines that don’t seem to exist (such as the 1 and G).

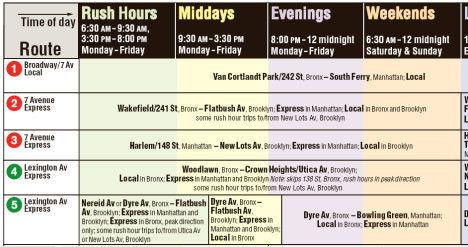

Other issues with the shapes.txt file after filtering with the trips.txt file are that the
line terminates at 57th Street/7th Avenue and the GTFS data includes shapes that show the
running to Jamaica-179th St, the

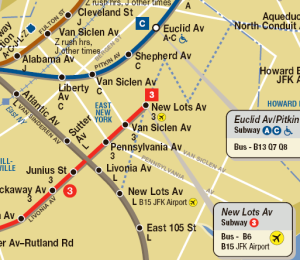

running to New Lots Ave on the 3/4 line, the
extending to New Lots, and the
running to New Lots. As far as I can tell, these routes do not exist for the riding public. Perhaps these are artifacts of older routing schemes, but it makes for an inadequate solution for mapping. I’m curious how the automated routing and scheduling apps deal with this.
——————————–
UPDATE 7/20/10

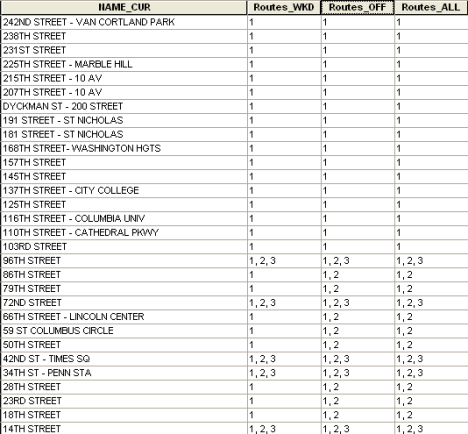

After I wrote the preceding paragraph, I did quite a bit more digging into the subway GTFS data for a post at my blog about subway stations. I realized that my points above about the
and

lines were wrong. There are, in fact, stops that these trains make at the stations I mention above. There aren’t many of them, but they exist. My post about station data explains this more fully. So for these routes at least, the shapes.txt file is ok.
——————————–
A bigger problem, though, is that the latest version of the

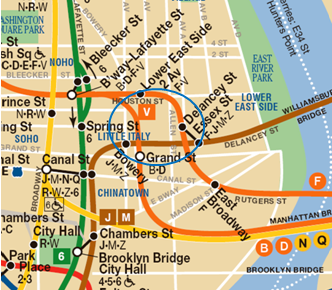

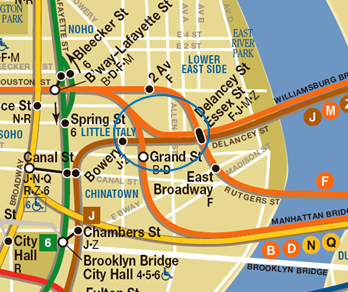

line is missing from the shapes data, and can’t be created from the approach described above for the 1 and G. The images below highlight the challenge – the area in question is circled in blue on both images. In the old map, the M runs along what is now the J-Z line, and the orange F-V and B-D lines cross the J-M-Z line. Unfortunately this old routing is what the latest GTFS geometry follows.

But with the latest service changes, the new M line comes in from Brooklyn and then goes north to meet the B-D line. In the latest shapes.txt file, there is no such geometry for the M. The geometry follows the old J-M-Z line with no obvious shape that follows the M’s new northward jog to meet the B-D line.

Therefore, I created a new line segment for the M, combining segments from the old M and V lines (shape_id values of “M..N89R” and “V..N01R”), along with an arc connecting the two, using ESRI’s ArcGIS editing tools.
Methodology
Once I had the updated set of “shapes” from GTFS, my goal was to somehow convert this data into a GIS version of the MTA’s subway lines in a way that could be replicated (and perhaps integrated back into GTFS format) and also easily symbolized to show separate lines along trunk routes.
As far as I know, to the extent anyone had a GIS dataset of subway routes prior to GTFS (such as this one we had created for the OASIS website by digitizing the MTA’s subway map), the only way to display separate trunk lines was to manually edit the geometry of the GIS line segments along a trunk route by clipping the line and moving it parallel to the trunk line, so it would show up as a distinct line symbol. Obviously this has problems — the manual work involved is tedious, imprecise, hard to replicate, and it doesn’t scale well — it might work at a certain zoom level, but then zooming in would show the parallel lines farther apart and zooming out would show them merged together — as illustrated by the images below from the NYC Citymap website, going from a wide zoom to a closer zoom:

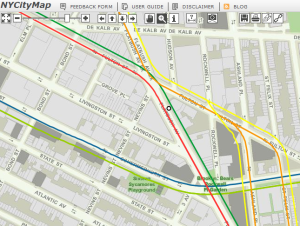

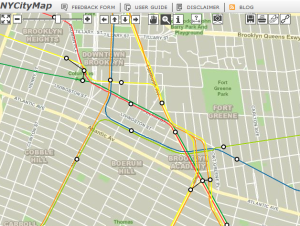

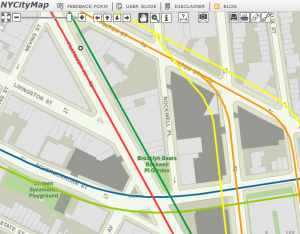

(The Citymap site is just one example; you can see a similar situation on OASISnyc.net — as you zoom in on the map at this link, you’ll see the
and
lines become farther apart.)
Divisions and Lines
I remembered that NYC Transit uses “division” and “line” designations that might be helpful in distinguishing the segments. The divisions are a throwback to when the subway system was really three separate systems — the IRT, IND, and BMT. But the line designations are based on more or less current track arrangements (and you can see some of these on the current subway map – see excerpt below).

For example, the movie “The Taking of Pelham One Two Three” refers to the
train running on the Pelham Line, leaving the Pelham Bay Park station at 1:23. Wikipedia has lots of information about the line designations, such as the IND 6th Avenue line or the BMT Nassau Street line.
But how to assign these to the shapes.txt file? The line IDs/names are not included as part of GTFS, and I’ve not seen this information provided anywhere else (publicly anyway).
Station entrance/exit data provides the missing link

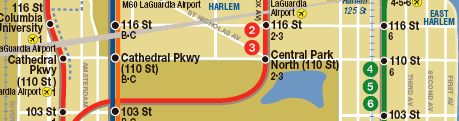

Then on July 1 the MTA released a file listing subway entrances and exits with latitude/longitude for each one (the file was updated July 7 to fix some issues in the earlier data). Useful in its own right, the file includes the station name for each entrance/exit along with its division and line. Neat! The entrance/exit points don’t necessarily overlap or intersect the line shapes, so I wouldn’t be able to automatically assign the divisions and lines to the shapes using GIS, but there are only 37 unique lines based on the entrance/exit data so it wouldn’t be that hard or time-consuming to do it manually.

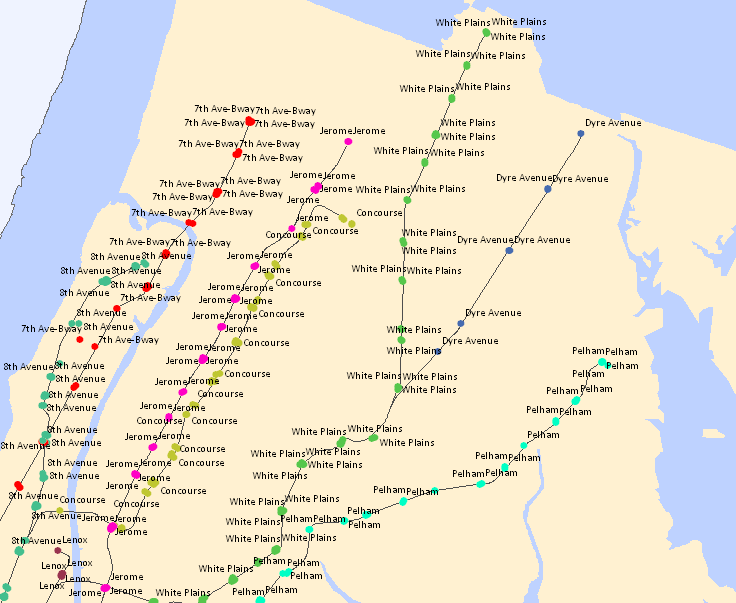

My approach was to create a thematic map of the entrances color-coded by line designation, overlay the GTFS shapes file of subway routes, and then edit the shapes file by splitting the segments where each set of color-coded entrances ended and adding the corresponding line attribute to these new segments. The image below illustrates the approach.

In other words, instead of a single shape representing the

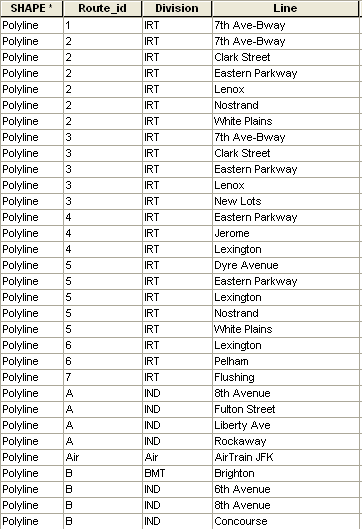

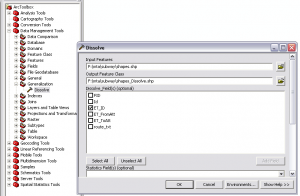

line, I created six non-overlapping segments to represent the entire 2 train route (along the 7th Ave-Bway, Clark Street, Eastern Parkway, Lenox, Nostrand, and White Plains lines). I used the ArcGIS “Split Tool” quite a bit, and ended up with a shapefile with 80 unique shapes (including the AirTrain — which is included in GTFS but isn’t managed by MTA so likely doesn’t have an MTA “line” designation). The attributes from the new file look like this:

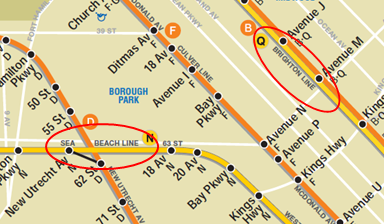

This was a manual process based on visual inspection of the line segments, so I’m sure error has crept in. Also, the way I did it, I allowed for some exceptions. I didn’t rigorously create new segments, for example, along what appears to be a trunk line in Manhattan where the IND 6th Avenue and 8th Avenue lines meet at the West 4th Street station. And I probably didn’t handle lines travelling over bridges or through tunnels as well as I could have. And the 5 route along the IRT White Plains line extends from Nereid Avenue to 138th Street/Grand Concourse, but the #5 in the Bronx that just runs during rush hour goes from East 180th Street to Nereid Ave (so on my map the dashed line symbology extends too far south).
Overall, though, I think it works well — it’s pretty good for a first pass.
ArcGIS caused import hassles …
Btw, I should point out that though ArcGIS’s editing tools were great for splitting and re-combining the line segments, ArcGIS misinterpreted important fields when importing the GTFS text files. Fields that were text (such as “route_id” in the trips.txt file) were imported as numeric, preventing an accurate join. I needed to use another program (I used SPSS) to save the trips.txt file as a DBF which preserved the text format of the field. (I had tried using Excel to convert from TXT to CSV and also to XLS, but that also forced the text field to convert to numeric.)
… but ArcGIS provided invaluable cartography tools

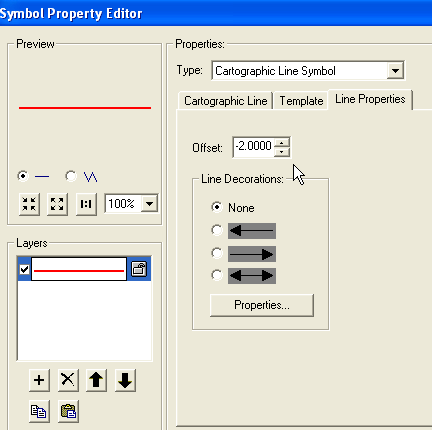

Next step was to create the symbology. I relied on two ArcGIS features to display multiple lines along a trunk route as discrete line symbols: the “cartographic line symbol” feature, and “symbol levels”. The cartographic line symbol component of ArcGIS’s Symbol Property Editor, among other things, enables you to attach an offset value to the line symbol. See screen shot below. The great thing here is that the offset is relative depending on the zoom level of the map — as you zoom in or out the line symbols do not merge together or move further apart, thereby solving the problem parallel copies of line segments.

The Cartographic Line Symbol tool also allows you to create a dashed line symbol, which I used for the Rockaway Park Shuttle and the rush hour extension of the 5 train in the Bronx.
The “symbol levels” feature enabled me to ensure that line segments weren’t inadvertently masked by others along the same geometry. For example, simply offsetting the
and
routes from the
and
routes running along the IND 8th Avenue line may result in two parallel orange lines, rather than a blue and an orange line. Setting a priority symbol level ensures that the blue and orange lines will run in parallel.

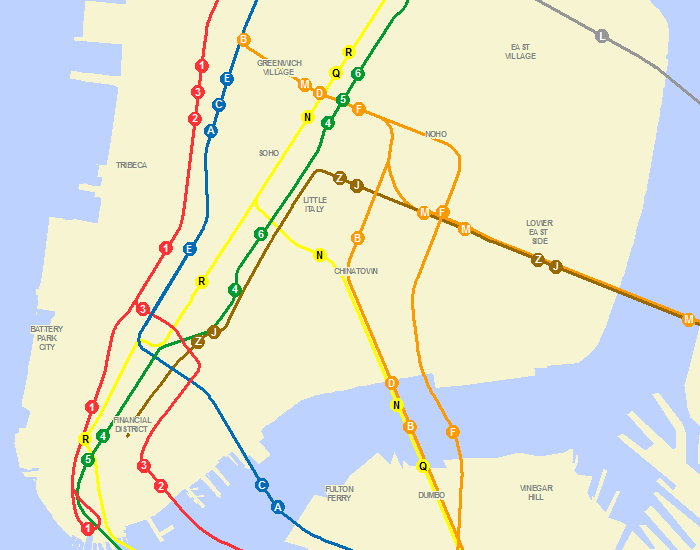

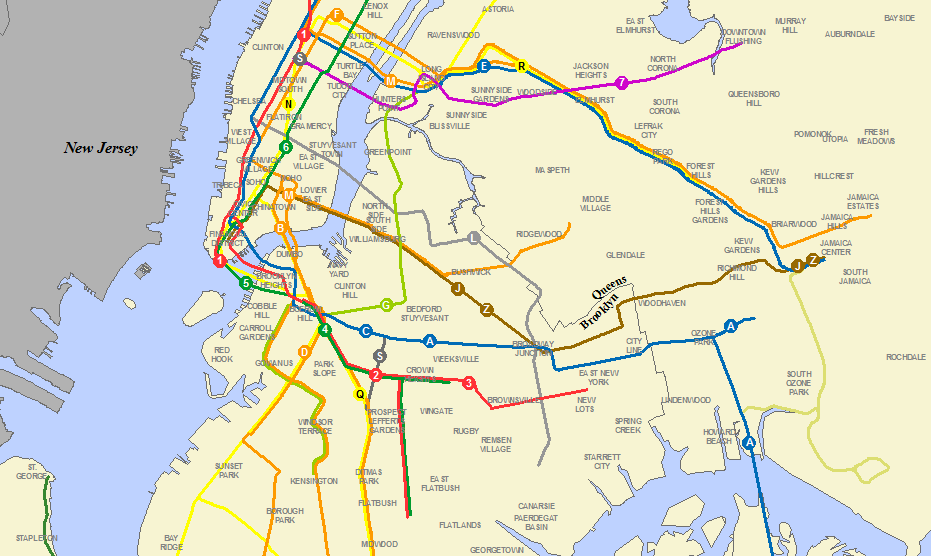

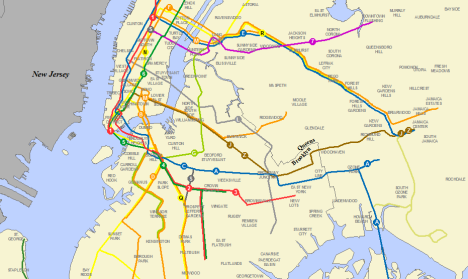

The resulting trunk line symbology looks good whether you’re zoomed out …

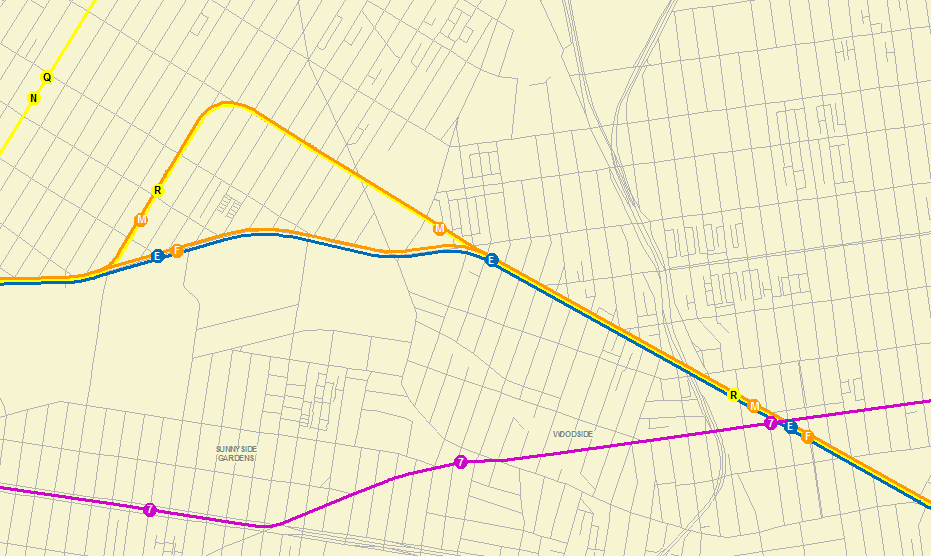

… or zoomed in close:

Soon we’ll have the updated lines and symbology on the OASIS mapping site.
In order to recreate the map symbology, I’ve preserved the color scheme in an ESRI layer (.lyr) file, linked below along with the actual shapefile. If you’re using a GIS that doesn’t use layer files you’ll need to redo the symbology, but at least you can use the attributes to do so.
(The layer file includes subway route labels that were inspired by an approach provided by ESRI’s New York City office that we first applied for the OASIS site — using the subway route icons a la the MTA subway map. I’ve streamlined it a bit here, and it’s easy to modify further either with ArcGIS or another GIS package. I’ve included a basic MXD file that preserves the labeling. The MXD uses ESRI’s Maplex labeling engine, but the labels will work with ESRI’s standard labeling engine as well.)

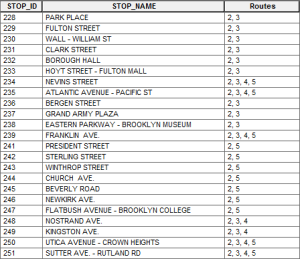

The one missing component to this data is a layer of transfers between subway stations. I know this has been discussed on the MTA Developers Resource list, but this will have to wait till a more robust data set is available (or I or others have the time to put one together).
Links to the data
Here’s the GIS subway data in shapefile format (zipped):
If you use the data and layer file (which I hope you do), please let me know how it works out. I’m not including any kind of Creative Commons licensing, but I’d appreciate it if you could reference the “CUNY Mapping Service at the Center for Urban Research” if you use the data and especially the layer symbology in any printed maps or online applications. Thanks!

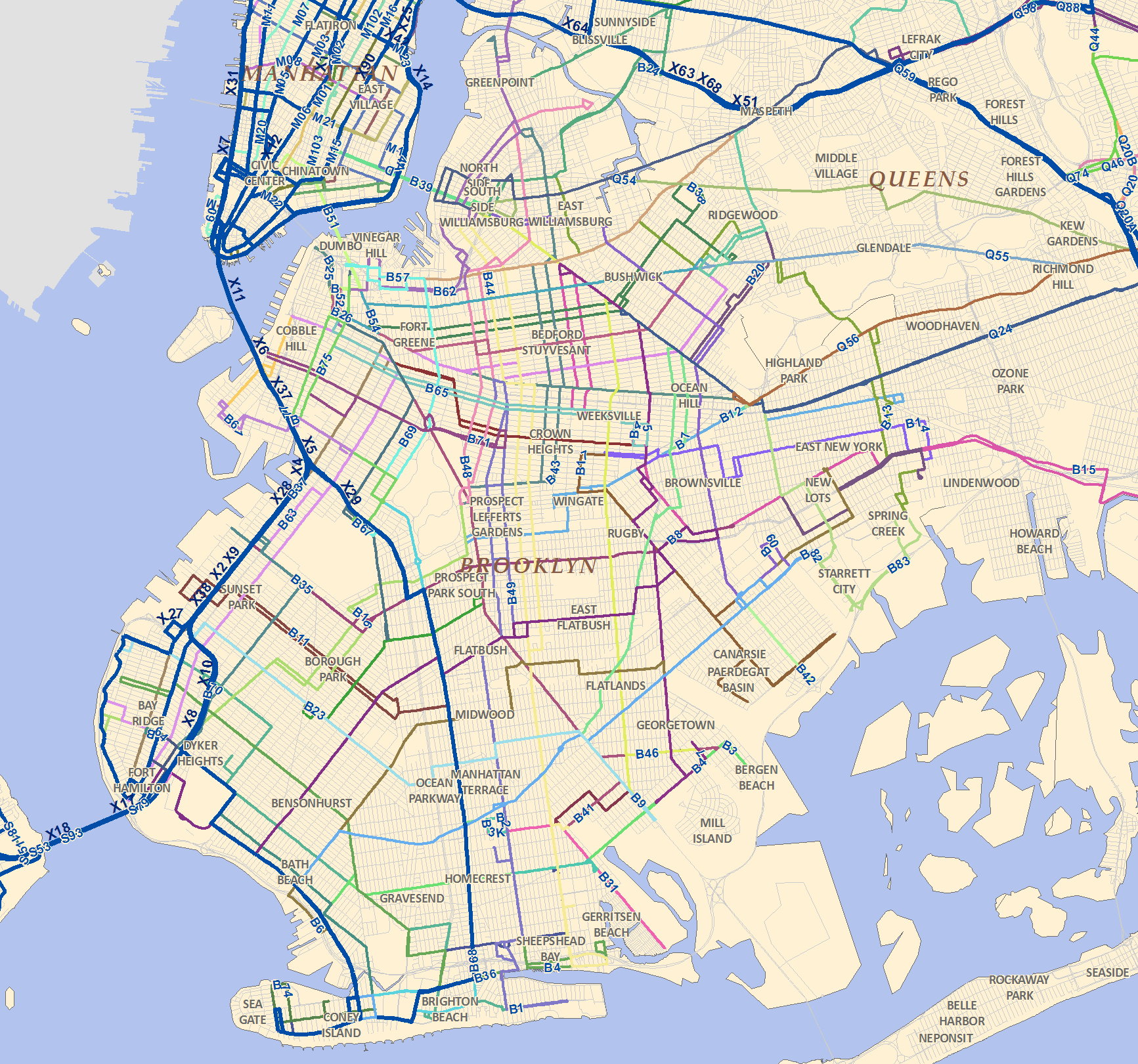

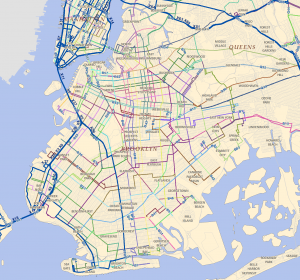

Also, here are the post-June 27 service change bus routes in shapefile format (zipped):
- the “grouped” version (214 distinct features, one for each bus route); and
- the “triphead” version (includes duplicate line features, for a total of 978 features, because buses on a given route may be travelling to different end points).
top
Better than Google Maps cartography?

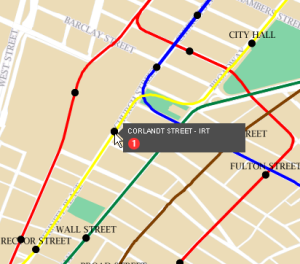

I definitely wanted to compare my GIS version of the subway GTFS data with Google Maps, which presumably uses the GTFS data not only for transit directions but also for the basemap itself. Two things surprised me. One was that, as of today (July 7) almost two weeks after the MTA’s service changes took effect, Google Maps still shows old subway routes and station information.

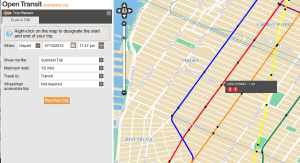

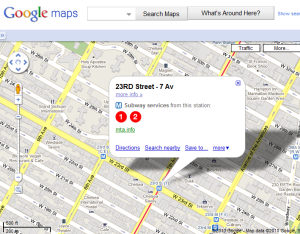

The map below, for example, still displays the old
line (see the 23rd St/6th Avenue station) and the discontinued
line (see the 23rd St and 28th St Broadway line stations).

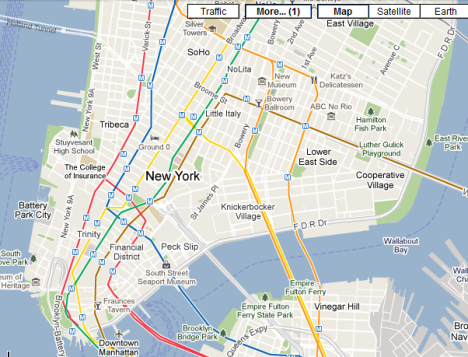

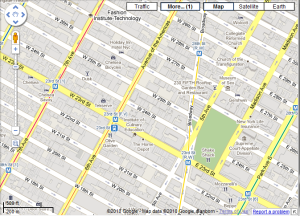

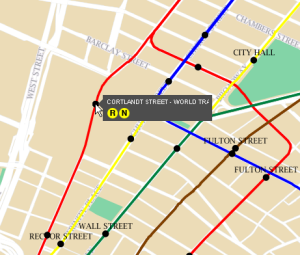

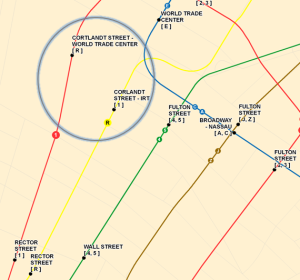

Also, the subway lines on Google Maps were choppy and not as smooth as the GTFS-derived GIS lines. The images below compare the two in lower Manhattan.


I don’t think it’s nitpicking to point out the difference. One important aspect of the MTA’s GTFS data from a cartographic perspective is the high-quality route geometry. It makes it that much more useful not only for good map development, but also for spatial analysis and alignment with other NYC GIS data layers. Kudos to MTA for providing it. I’m surprised Google apparently doesn’t use GTFS for their basemap (hopefully they’ll correct me if I’m wrong).
Going forward
For my purposes (and I think I’m far from alone here), I’m more interested in displaying the subway lines in a map layout than developing an application that provides routing and scheduling. Whether or not I use the data for spatial analysis, I’d like to have a subway layer for use in a GIS or any other application that needs the symbology of MTA’s printed map but is more spatially precise than MTA’s map and not as fine-grained as individual trips.
The GTFS format is great for all the web and mobile applications that are being developed. But for the purposes of local planning work by Community Boards, students, the media, public officials, etc — we want to see the subway lines on a map and analyze them spatially — visualizing and understanding the relationships of nearby land uses, demographics, etc as well as the ability to monitor maintenance and operations trends, determine who represents each line when service changes are being proposed, and more. So hopefully MTA will see fit to provide subway route data in a systematic way so we can integrate it easily into our maps.
It’s likely that NYC Transit maintains its subway line/route data in a similar structure as I’ve described above in GIS format, either for planning/modeling purposes or for other mapping needs. Ideally it’s in a format that allows for an automated, rules-driven way of displaying the routes by division/line so changes are handled as seamlessly as possible. In other words, it would be great if MTA could provide the subway data in a way that doesn’t require the additional staff resources that are involved in coverting the scheduling/routing data to GTFS format. I’m not expecting anything as simple as “just hitting the export button,” but hopefully something close :). And since subway routing doesn’t change very often (certainly not as frequently as schedules), this should be much less of a burden on the agency than the work involved in providing the GTFS data.
I look forward to continuing the dialog.
